NIXUS TECHNOLOGY

Market Leader in Advanced Inflatable Technology

  • Zepelin has 20 years experience in the design and manufacturing of inflatable structures

  • Zepelin own many worldwide design patents for both low and high pressure inflatable structures

  • Shelters proven to withstand wind speeds of up to 100 Kph and snow loads of 50kg/m2

  • Highest quality tent materials: durable, waterproof, fire retardant and suitable for very low temperatures

  • Current UK clients include the Armed Forces, Samaritans, Police and Search & Rescue.

  • Sole UK distributor for NIXUS2PROTECT

  • We tailor our approach to your needs with dedicated communication and support throughout

The majority of structures are based on inflatable technology because these systems enable rapid deployment with minimum setup labour. They are also easy and reliable to use. Durability, and the ability to withstand extreme weather conditions are other important factors to many clients and these criteria are also met by NIXUS advanced inflatable technology by Zepelin.

Above all, structures have to be safe, so all products are tested to the extreme. For example, all heavy duty inflatable shelters, such as the RIBS and PRO, are tested and proven to withstand wind gusts up to 100kph! The PRO-ELR (Extended Load Resistance) shelter is designed for missions with a snow load requirement of 50kg/m2 in combination with a wind load of 33m/s. Another safety feature is the ability of NIXUS inflatable shelters to suffer an air leak in one support tube without collapse or even significant distortion of the shape of the shelter.

In other words, Zepelin continue to adapt and develop Nixus inflatable technology which meet or exceed the operating and environmental conditions clients require their shelters to work in. We are proud to be the UK trusted partner.

CUTTING-EDGE TECHNOLOGY

We have over 20 years experience designing the strongest and fastest deploying inflatable structures in the world.
Our specialist knowledge in the structural engineering of inflatable structures produces shelters our clients trust for their resistance to extreme conditions and ease of use.

NIXUS PGK
Inflatable Tent

Low Pressure Tubes

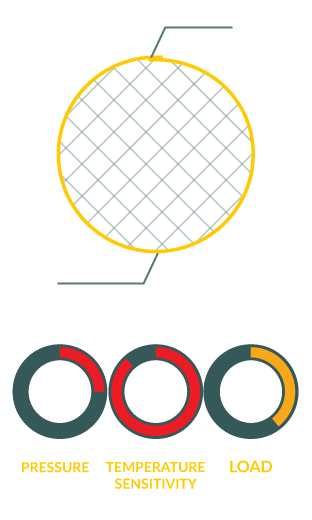

Well proven inflatable tent system using seam welded tubes inflated to just 0.3 bar. Good for low load conditions, however is sensitive to temperature fluctuations and requires a pressure control system to add/release air to maintain the correct pressure.

NIXUS PRO
Heavy Duty Tent

High Pressure Tubes

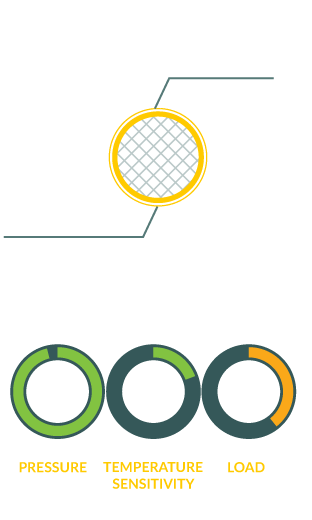

Uses seamless heavy duty tubes inflated to between 3 to 8 bar giving a much greater load bearing capacity for wind and snow, etc. Not sensitive to temperature variation so a pressure control system is not required. Ideal for extreme cold to desert applications.

NIXUS RIBS
Large Span Structures

Multi Tube Design

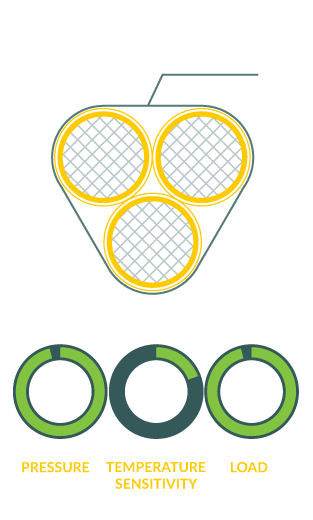

Patented RIBS system uses 3 seamless 6″ high pressure tubes per supporting arch giving huge load bearing capacity, greater stability and built in redundancy/safety. Ideal for large span structures and variable temperature conditions from extreme cold to desert.

EXTREEM WIND RESISTANCE

(Proven to 100 Km/h – 62 mph)

RIBS Large Span Inflatable Building Wind Test

THE SAFEST INFLATABLE SYSTEMS

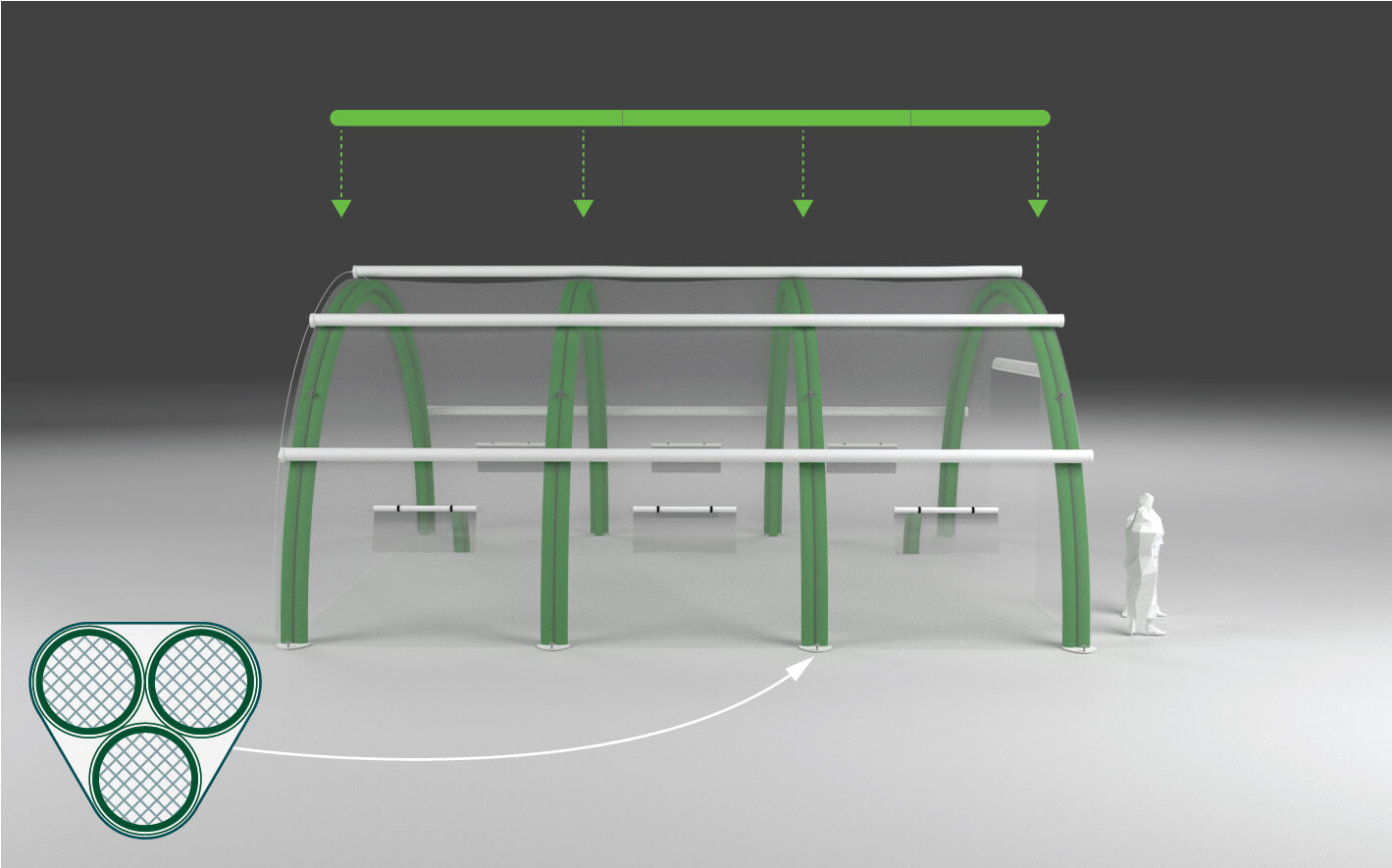

All air chambers fully pressurised

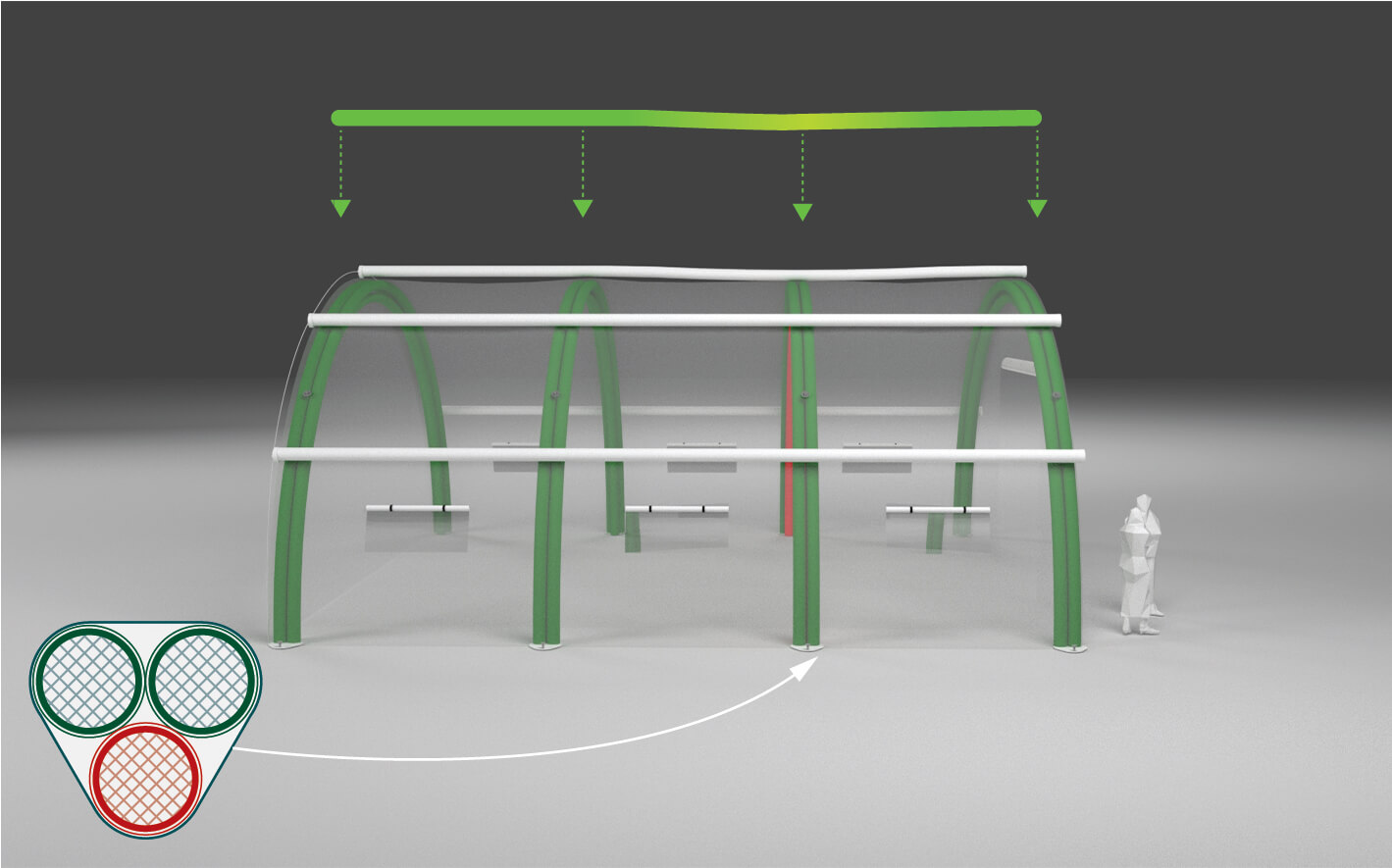

One air chamber is empty

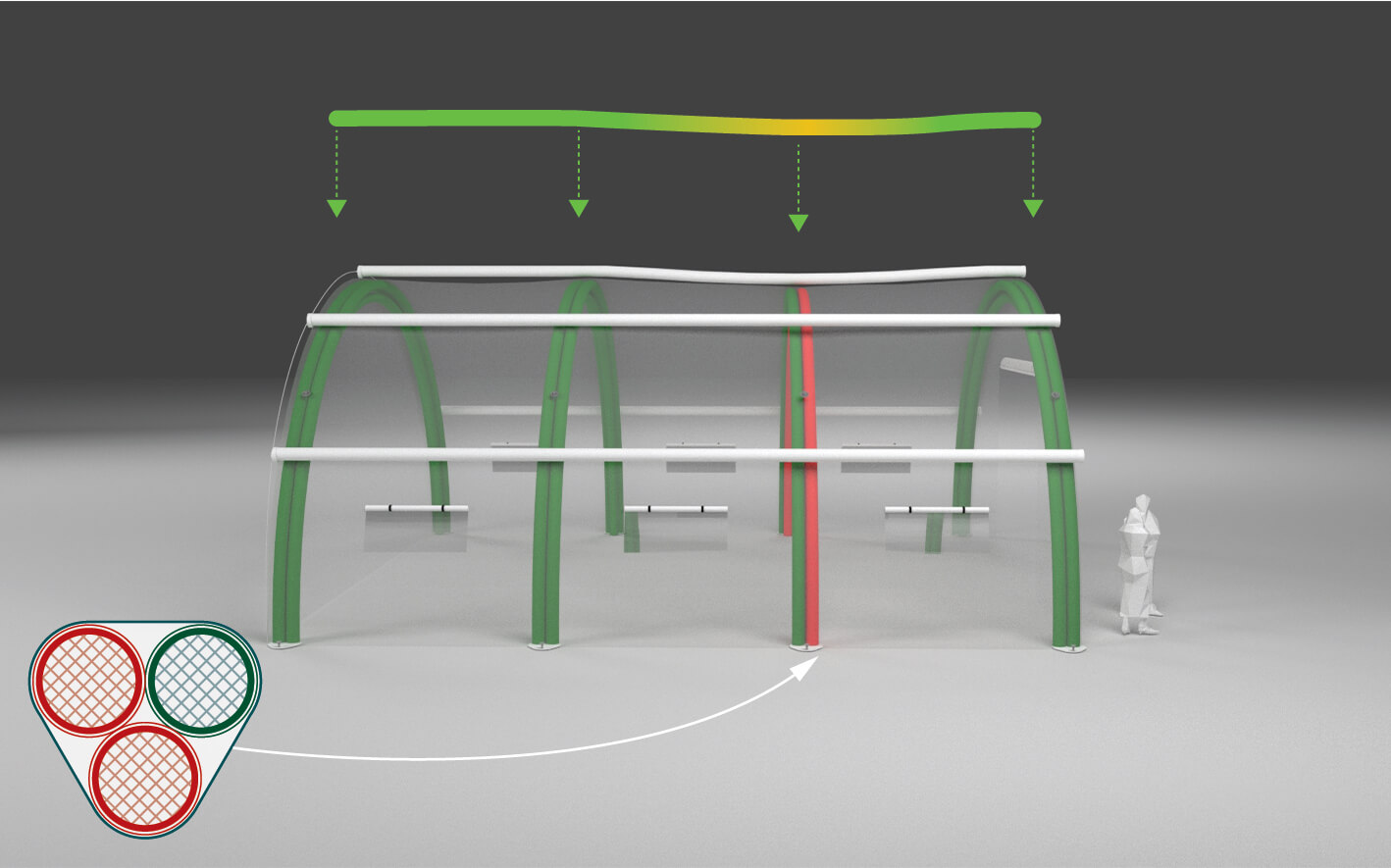

Two air chambers are empty

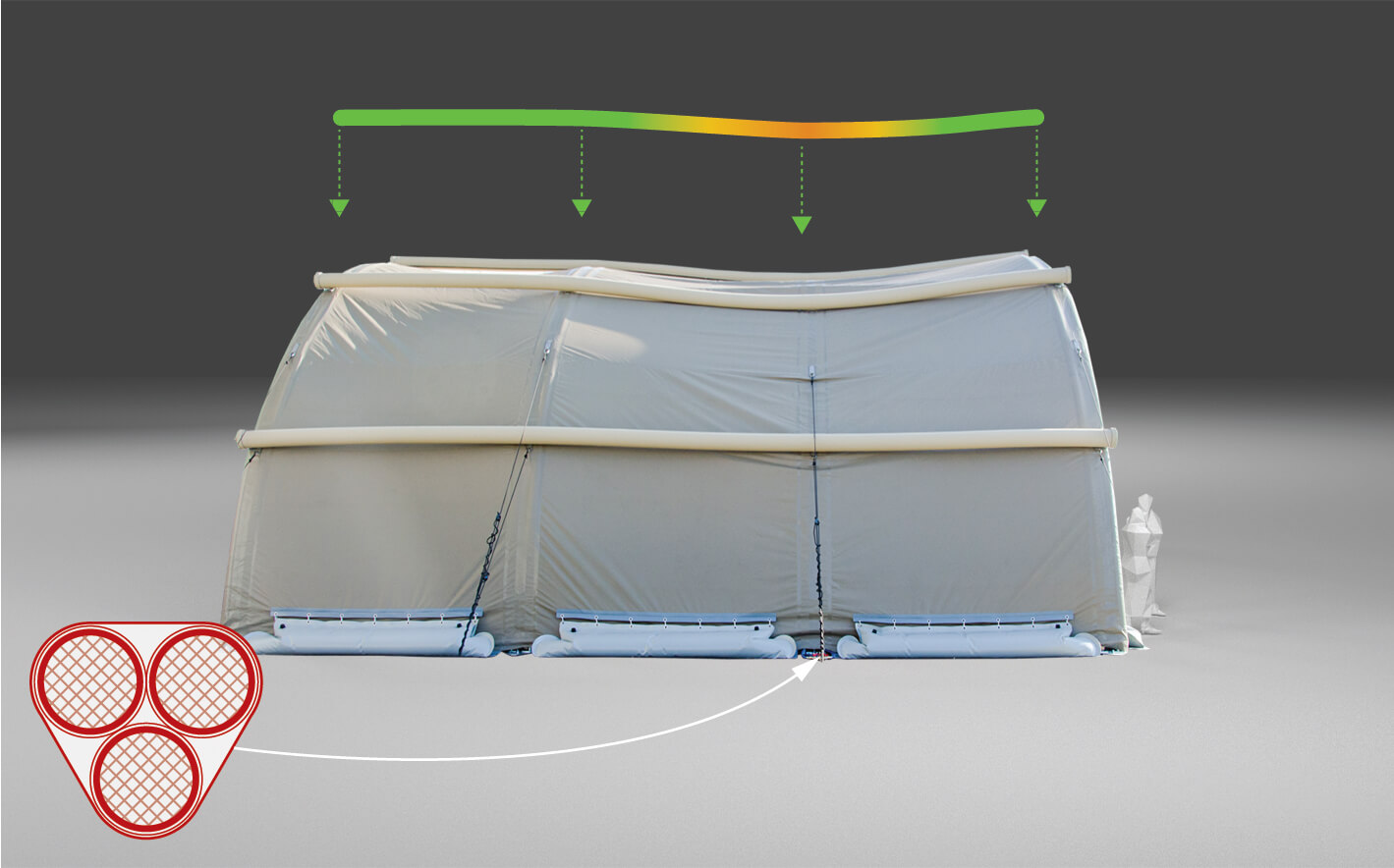

All 3 air chambers need to be damaged/empty to collapse the beam

CONTACT US

Please get in touch to discuss your requirements or find out more about any of our rapid deployment shelters today. Our team will be happy to answer your questions and provide quotations as required.
